PVE,SRIOV核显immich相册开启OpenVINO智能搜索

Debian,Ubuntu经测试都可以调用

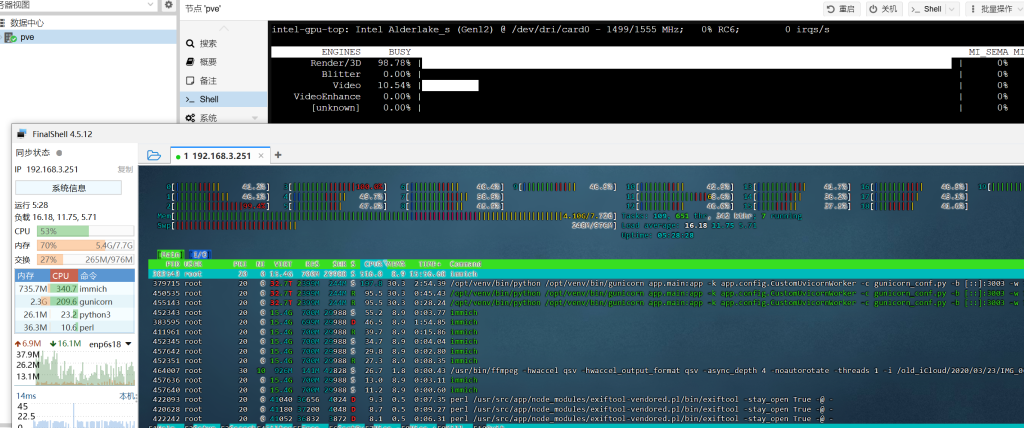

通过暂停和继续智能搜索,结合GPU占用率成功验证调用OpenVINO

XLM-Roberta-Large-Vit-B-16Plus模型

docker-compose.yml

#
# WARNING: Make sure to use the docker-compose.yml of the current release:
#
# https://github.com/immich-app/immich/releases/latest/download/docker-compose.yml
#
# The compose file on main may not be compatible with the latest release.
#

name: immich

services:
  immich-server:
    container_name: immich_server
    image: ghcr.io/immich-app/immich-server:${IMMICH_VERSION:-release}
    extends:
       file: hwaccel.transcoding.yml
       service: quicksync  # set to one of [nvenc, quicksync, rkmpp, vaapi, vaapi-wsl] for accelerated transcoding
    volumes:
      # Do not edit the next line. If you want to change the media storage location on your system, edit the value of UPLOAD_LOCATION in the .env file
      - ${UPLOAD_LOCATION}:/usr/src/app/upload
      #- /mnt/nfs_share/iCloud/:/old_iCloud
      #- /mnt/nfs_share/DSM_Photos_backup:/old_dsm_photo
      - /etc/localtime:/etc/localtime:ro
    env_file:
      - .env
    ports:
      - '2283:2283'
    depends_on:
      - redis
      - database
    restart: always
    healthcheck:
      disable: false

  immich-machine-learning:
    container_name: immich_machine_learning
    # For hardware acceleration, add one of -[armnn, cuda, openvino] to the image tag.
    # Example tag: ${IMMICH_VERSION:-release}-cuda
    image: ghcr.io/immich-app/immich-machine-learning:${IMMICH_VERSION:-release}-openvino
    extends: # uncomment this section for hardware acceleration - see https://immich.app/docs/features/ml-hardware-acceleration
       file: hwaccel.ml.yml
       service: openvino # set to one of [armnn, cuda, openvino, openvino-wsl] for accelerated inference - use the `-wsl` version for WSL2 where applicable
    volumes:
      - model-cache:/cache
    env_file:
      - .env
    restart: always
    healthcheck:
      disable: false

  redis:
    container_name: immich_redis
    image: docker.io/redis:6.2-alpine@sha256:eaba718fecd1196d88533de7ba49bf903ad33664a92debb24660a922ecd9cac8
    healthcheck:
      test: redis-cli ping || exit 1
    restart: always

  database:
    container_name: immich_postgres
    image: docker.io/tensorchord/pgvecto-rs:pg14-v0.2.0@sha256:90724186f0a3517cf6914295b5ab410db9ce23190a2d9d0b9dd6463e3fa298f0
    environment:
      POSTGRES_PASSWORD: ${DB_PASSWORD}
      POSTGRES_USER: ${DB_USERNAME}
      POSTGRES_DB: ${DB_DATABASE_NAME}
      POSTGRES_INITDB_ARGS: '--data-checksums'
    volumes:
      # Do not edit the next line. If you want to change the database storage location on your system, edit the value of DB_DATA_LOCATION in the .env file
      - ${DB_DATA_LOCATION}:/var/lib/postgresql/data
    healthcheck:
      test: pg_isready --dbname='${DB_DATABASE_NAME}' --username='${DB_USERNAME}' || exit 1; Chksum="$$(psql --dbname='${DB_DATABASE_NAME}' --username='${DB_USERNAME}' --tuples-only --no-align --command='SELECT COALESCE(SUM(checksum_failures), 0) FROM pg_stat_database')"; echo "checksum failure count is $$Chksum"; [ "$$Chksum" = '0' ] || exit 1
      interval: 5m
      start_interval: 30s
      start_period: 5m
    command:
      [
        'postgres',
        '-c',
        'shared_preload_libraries=vectors.so',
        '-c',
        'search_path="$$user", public, vectors',
        '-c',
        'logging_collector=on',
        '-c',
        'max_wal_size=2GB',
        '-c',
        'shared_buffers=512MB',
        '-c',
        'wal_compression=on',
      ]
    restart: always

volumes:
  model-cache:

hwaccel.ml.yml

# Configurations for hardware-accelerated machine learning

# If using Unraid or another platform that doesn't allow multiple Compose files,
# you can inline the config for a backend by copying its contents
# into the immich-machine-learning service in the docker-compose.yml file.

# See https://immich.app/docs/features/ml-hardware-acceleration for info on usage.

services:
  armnn:
    devices:
      - /dev/mali0:/dev/mali0
    volumes:
      - /lib/firmware/mali_csffw.bin:/lib/firmware/mali_csffw.bin:ro # Mali firmware for your chipset (not always required depending on the driver)
      - /usr/lib/libmali.so:/usr/lib/libmali.so:ro # Mali driver for your chipset (always required)

  cpu: {}

  cuda:
    deploy:
      resources:
        reservations:
          devices:
            - driver: nvidia
              count: 1
              capabilities:
                - gpu

  openvino:
    device_cgroup_rules:
      - 'c 189:* rmw'
    devices:
      - /dev/dri:/dev/dri
    volumes:
      - /dev/bus/usb:/dev/bus/usb

  openvino-wsl:
    devices:
      - /dev/dri:/dev/dri
      - /dev/dxg:/dev/dxg
    volumes:
      - /dev/bus/usb:/dev/bus/usb
      - /usr/lib/wsl:/usr/lib/wsl

hwaccel.transcoding.yml

# Configurations for hardware-accelerated transcoding

# If using Unraid or another platform that doesn't allow multiple Compose files,
# you can inline the config for a backend by copying its contents
# into the immich-microservices service in the docker-compose.yml file.

# See https://immich.app/docs/features/hardware-transcoding for more info on using hardware transcoding.

services:
  cpu: {}

  nvenc:
    deploy:
      resources:
        reservations:
          devices:
            - driver: nvidia
              count: 1
              capabilities:
                - gpu
                - compute
                - video

  quicksync:
    devices:
      - /dev/dri:/dev/dri

  rkmpp:
    security_opt: # enables full access to /sys and /proc, still far better than privileged: true
      - systempaths=unconfined
      - apparmor=unconfined
    group_add:
      - video
    devices:
      - /dev/rga:/dev/rga
      - /dev/dri:/dev/dri
      - /dev/dma_heap:/dev/dma_heap
      - /dev/mpp_service:/dev/mpp_service
      #- /dev/mali0:/dev/mali0 # only required to enable OpenCL-accelerated HDR -> SDR tonemapping
    volumes:
      #- /etc/OpenCL:/etc/OpenCL:ro # only required to enable OpenCL-accelerated HDR -> SDR tonemapping
      #- /usr/lib/aarch64-linux-gnu/libmali.so.1:/usr/lib/aarch64-linux-gnu/libmali.so.1:ro # only required to enable OpenCL-accelerated HDR -> SDR tonemapping

  vaapi:
    devices:
      - /dev/dri:/dev/dri

  vaapi-wsl: # use this for VAAPI if you're running Immich in WSL2
    devices:
      - /dev/dri:/dev/dri
    volumes:
      - /usr/lib/wsl:/usr/lib/wsl
    environment:
      - LIBVA_DRIVER_NAME=d3d12

.env

# You can find documentation for all the supported env variables at https://immich.app/docs/install/environment-variables

# The location where your uploaded files are stored
UPLOAD_LOCATION=/mnt/nfs_share/immich
# The location where your database files are stored
DB_DATA_LOCATION=./postgres

# To set a timezone, uncomment the next line and change Etc/UTC to a TZ identifier from this list: https://en.wikipedia.org/wiki/List_of_tz_database_time_zones#List
# TZ=Asia/shanghai

# The Immich version to use. You can pin this to a specific version like "v1.71.0"
IMMICH_VERSION=v1.122.2

# Connection secret for postgres. You should change it to a random password
# Please use only the characters `A-Za-z0-9`, without special characters or spaces
DB_PASSWORD=postgres

# The values below this line do not need to be changed
###################################################################################
DB_USERNAME=postgres
DB_DATABASE_NAME=immich
